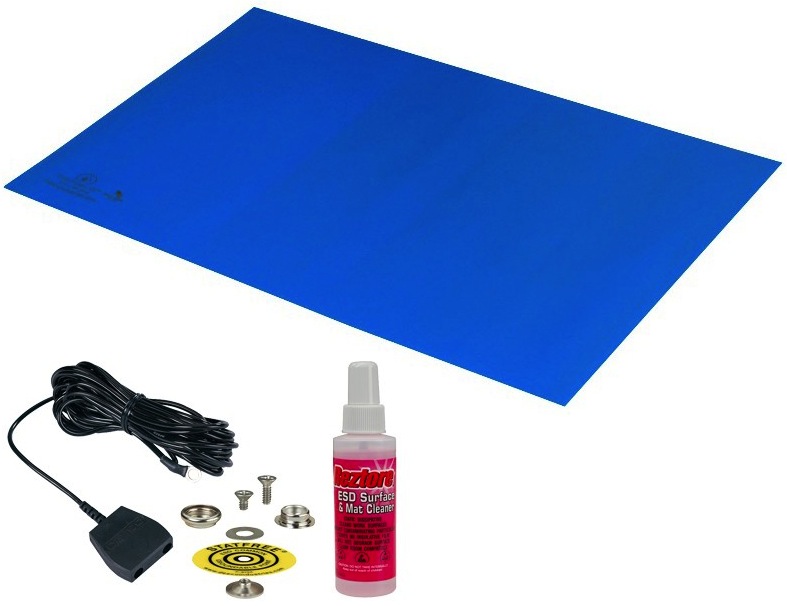

Mat, Statfree Z2 ESD 3-Layer Mat KitDesco

Statfree Z2 Dissipative 3-Layer Vinyl Blue Mat Top Kit

24 Inch x 48 Inch, .125 Thickness

Includes Common Point Grounding Kit

• Heat Fused 3-Layer Vinyl Composite
Provides reliable path to ground and eliminates static charge generation as a worksurface table mat, shelf liner, and cart liner.
• Dissipative (1 x 10⁶ < 1 x 10⁹ ohms Rtt) Abrasion Resistant Top Layer - Limited Lifetime Warranty
Meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items. Electricals will not drift for the life of the mat.
• Conductive (<10⁴ Rtt) Mesh Middle Layer Bottom Layer - Limited Lifetime Warranty
The dedicated conductive layer reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the mats to be used withmonitors. Electricals will not drift for the life of the mat.
• Dissipative (1 x 10⁶ < 1 x 10⁹ ohms Rtt) Cushioned Bottom Layer - Limited Lifetime Warranty
Provides additional energy absorption for components susceptible to physical shock.
• Laser Engraved With ESD Protective Symbol, Specs, and Manufacturer
Identifies ESD protective product for control & auditing purposes.
• Lead-free RoHS compliant
• Includes E333-111-1 Common Point Ground Kit
• Made in the United States of America
